Chipset： |
Ralink 3070 chip |
| |
Standards: |
IEEE 802.11n/b/g |
| |
Wireless signal rates with automatic fallback: |
11n:Up to 150Mbps(Dynamic)
11a:Up to 150Mbps
11g:Up to 150Mbps(Dynamic)
11b:Up to 150Mbps(Dynamic) |
| |
Frequency range: |
2.412～2.4835Ghz,5.180～5.805Ghz |
| |
Wireless transmit power: |
2.4Ghz-18dBm,5.8Ghz-13dBm |
| |
Working channel: |
1～13/36～161 |
| |
Receiver Sensitivity: |
130M:-68dBm@10%PER;
108M:-68dBm@10%PER;
54M:-68dBm@10%PER
11M:-85dBm@8%PER
6M:-88dBm@10%PER
1M:-90dBm@8%PER |
| |
Work mode: |
Ad-Hoc
Infrastructure
soft AP mode |
| |
Security: |
64/128 bit WEP |
| |
Support system: |
WPA/WPA2,WPA-PSK/WPA2-PSK(TKIP/AES)
Windows XP/Win CE/Linux/Mac/VISTA/Win7/8 |
| |

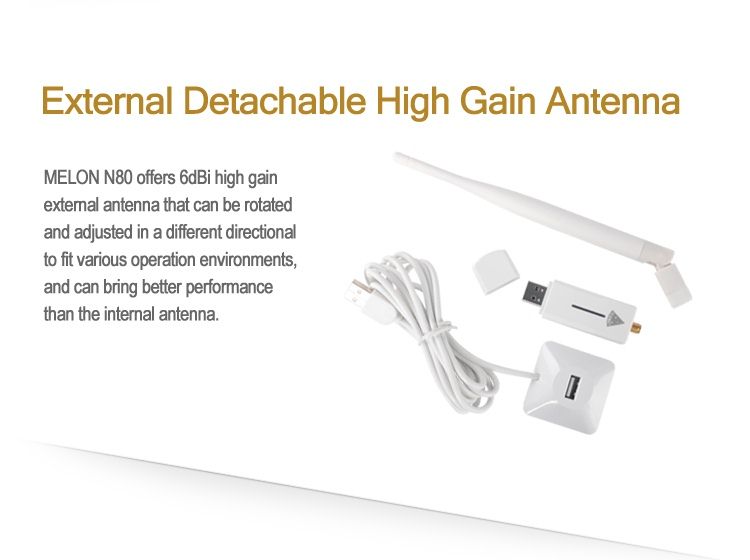

Antenna |
an extensible duat-band antenna(with SMA base) |
| |
Inerface type: |
USB2.0 High-Speed connector |
| |
Size(cm) |
21*15*4 |
| |
Operating temperature: |
-0℃～40℃ |
| |
Storage temperature: |
-40℃～70℃ |
| |
Relative humidity: |
10%～90%RH,non condensation |
| |
Storage humidity: |
5%～95%RH,non condensation |
