Hardware |
|
| |

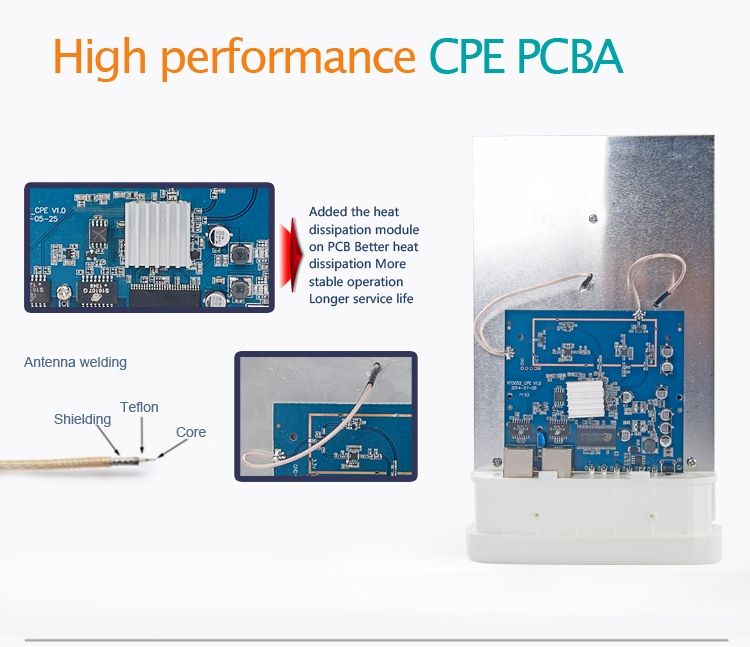

Chipset： |
Ralink RT3052F |
| |
SDRAM： |
32MB |
| |
Flash: |
4MB |
| |
Wireless
transmission rate: |
2.4GHz,2T2R,300Mbps |
| |
Ports: |
1xWAN，1xLAN |
| |
Power: |
POE 24V |
| |

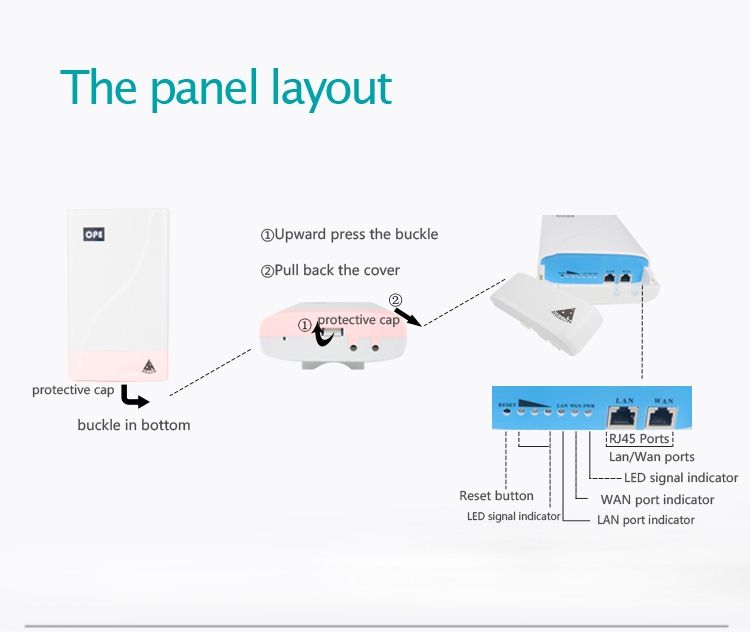

LED: |
powerx1,WAN portx1,LAN portx1,signal status indicatorx3 |
| |
Wireless Parameter |
|
| |
Protocol standard： |
IEEE802.11n, IEEE802.11g, IEEE802.11b |
| |
Frequency Range： |
2.4-2.4835GHz |
| |
Working channel： |
1~13 |
| |
Receive sensitivity： |
150M_2.4G: -74dBm
54M_2.4G: -79dBm
6M_2.4G: -94dBm |
| |
Wireless security： |
Wireless MAC address filtering
Wireless security function switch
64/128/152 bit WEP
WPA-PSK/WPA2-PSK, WPA/WPA2 |
| |
Software |
|
| |

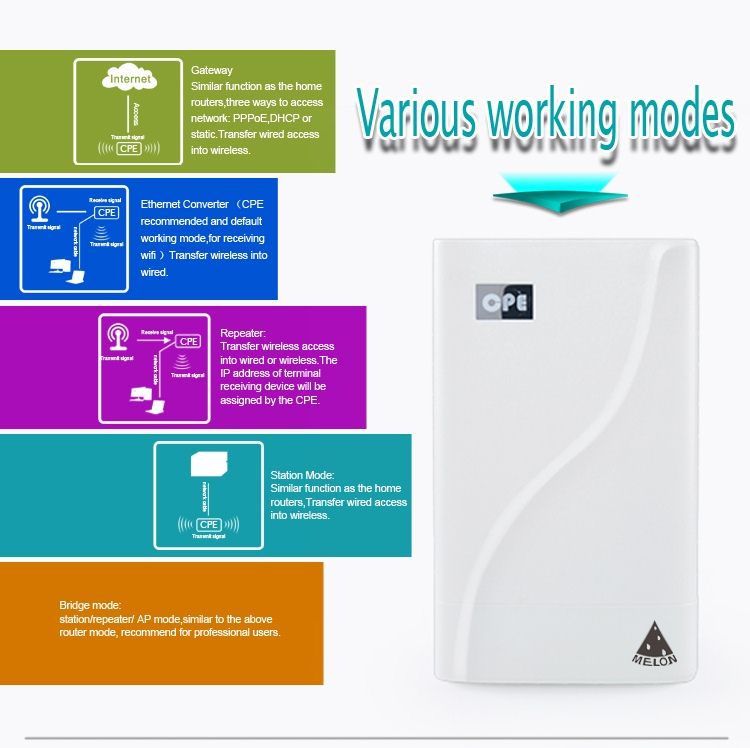

Working modes： |

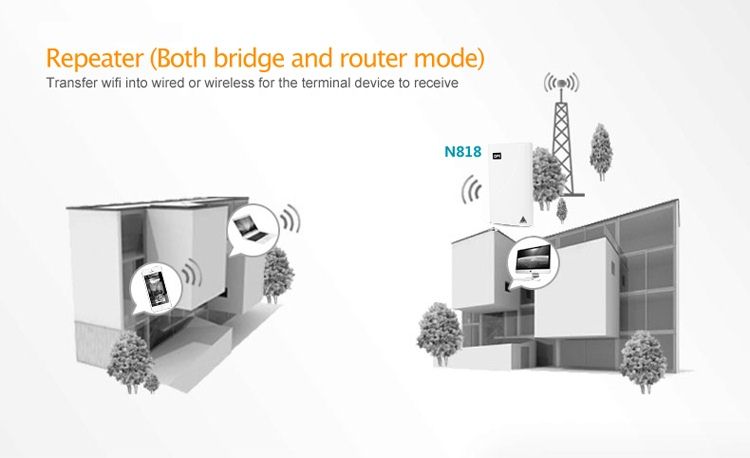

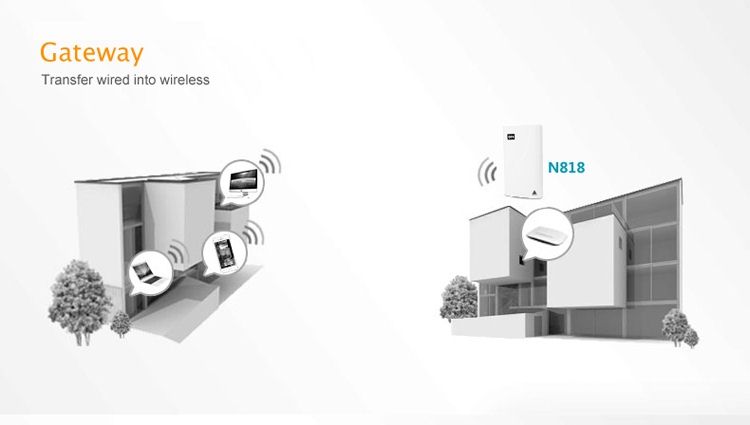

Router:Ethernet Converter/Gateway/Repeater

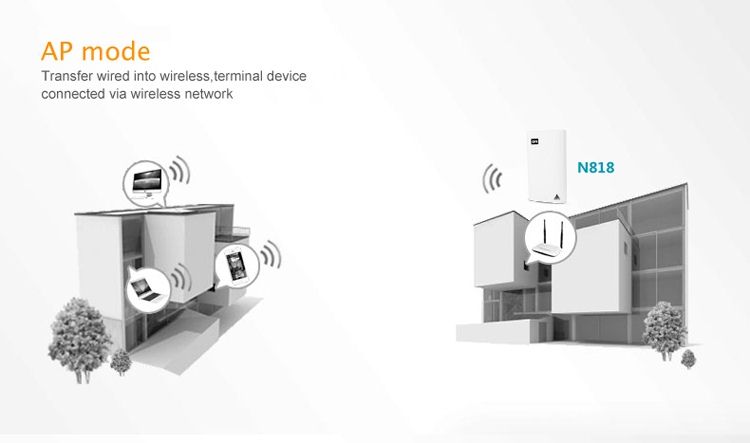

Bridge:Station/AP/Repeater |
| |
Wireless network setting： |
Multiple SSID setting
Auto channel select
Auto bandwidth
single/dual data flow |
| |
DHCP setting： |
DHCP server
DHCP client |
| |
System management： |
System language setting
Password settings
System update
Reset
Import and export profiles,system backup setting
System status |
| |
Others |
|
| |

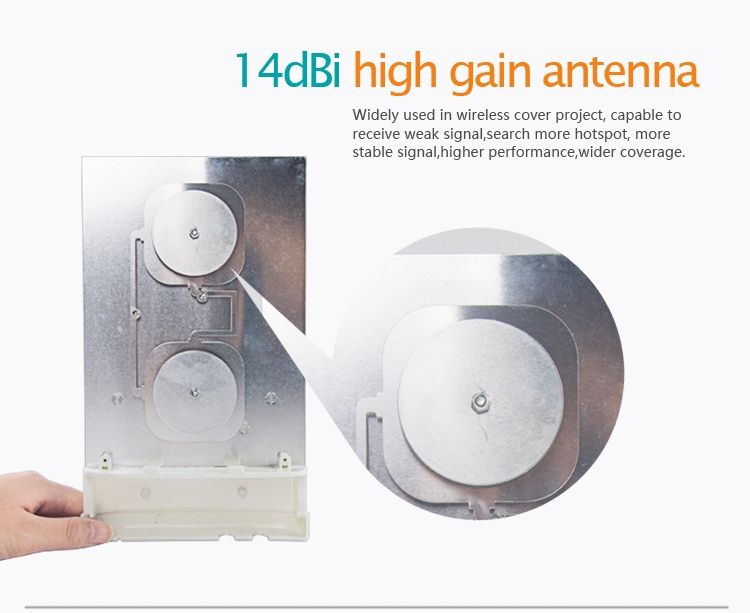

Antenna： |
Built-in high gain 2.4G MIMO antenna |
| |
Operating
environment： |
Working Temperature：0℃-40℃
Storage Temperature：-40℃-70℃
Operating humidity：10% -90%RH noncondensing
Storage humidity：5%-90%RH noncondensing |
